22" Generator Slide Out Kit
22" Generator Slide Out Kit
The Generator Slide Out Kit is simple to install and has a weight capacity of 500 lbs. This kit makes repairs on your generator easier by keeping the generator closer to your height without having to remove it from the trailer. The slides also have locks to keep the generator from moving around during travel.
G24, 22”W x 4.2”H x 22”D
(The bottom half base is 22” wide, the top half that slides is 20” wide)Capacity 500lbs. (This is weight evenly applied across the entire length of the slides, if all 500lbs is placed on the very edge when fully extended, expect it to fail.)
The slides lock in the closed position and the open position. You must operate the release lever to move it.
*The trailer openings lower lip clearance is 1”. The brackets have enough room to raise the slide another 1” by simply drilling new holes and mounting the slide higher on the lower mounting bracket.
*Slides are 22” and the lock levers add another 1-3/8”.

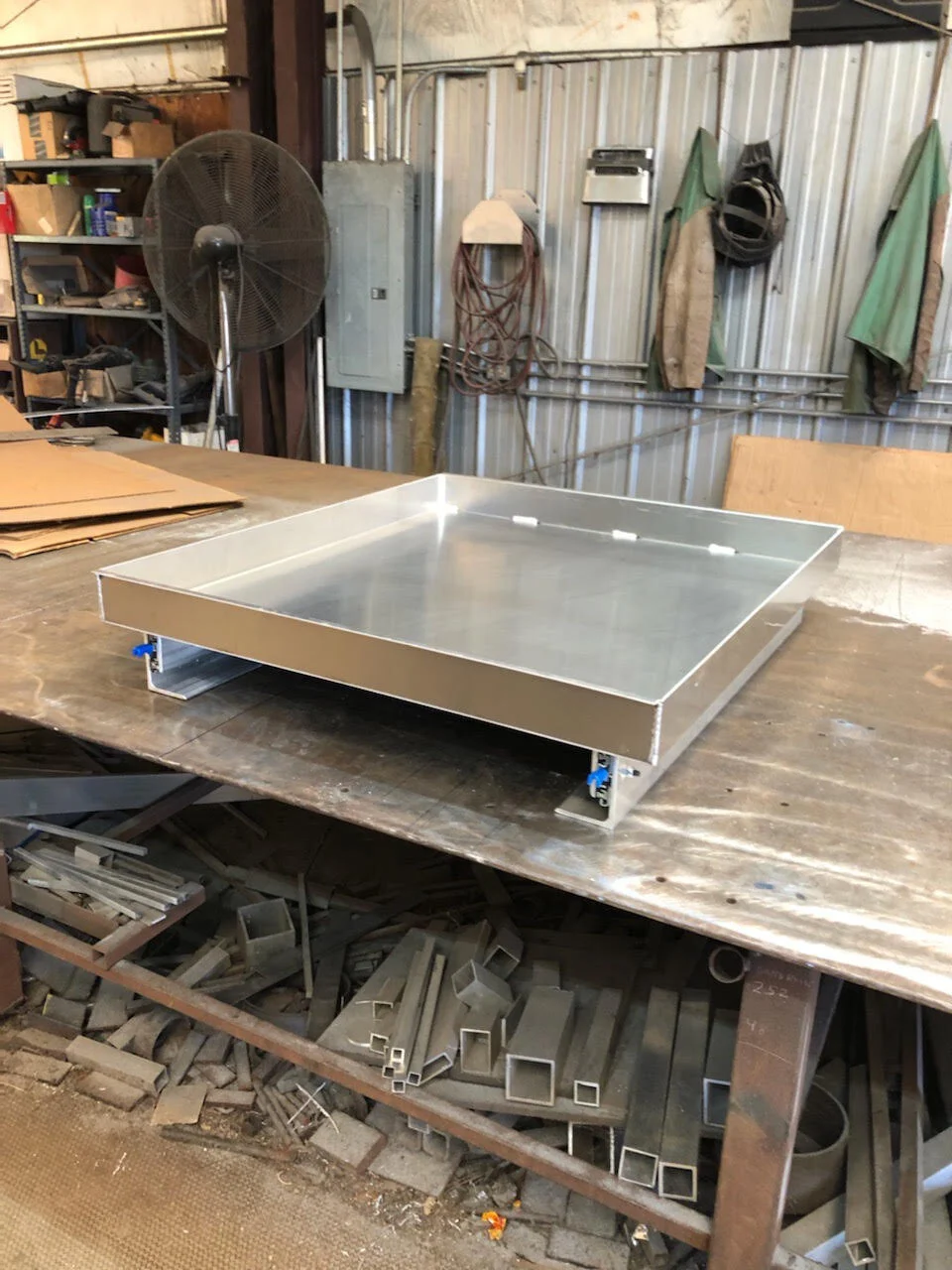

The additional tray option is custom and is subject to dimensions less than 26” x 26” x 3”. Please select “Yes” for the custom tray option and fill out the form during checkout.
If you choose the tray option, there are no holes drilled to bolt them together. Some decide to weld, bolt, or rivet them together. We do not want to charge our customers for unnecessary hardware. We have found that most customer decide to weld the tray to the slide.
Please allow 3-5 day production time on fabricated accessories.
If you have an interest in applying this slide out kit to other aspects of your trailer or shop, it may need some custom modifications, please complete and submit the form below.
